TY系列同軸式硬齒面齒輪減速器

TY Series of Carbide-Faced Coaxial Decelerators

一、概述Brief

TY系列同軸式硬齒面齒輪減速器是理想的動力傳送裝置，它廣泛適用于冶金.礦山，能源、建材、運輸、化工、紡織等行業。減速器的齒輪圓周速度不大于20m/s允許正，反轉:適用于水平臥式安裝，前后傾斜角不大于20°，直聯電機為Y系列三相異步四級電動機，電機的安裝型式為B5或B35;工作環境溫度為0'C -40"C

TY series similar-axle carbide-faced gear decel-erators are ideal dyramic transporting mechanics,which are widely used in metallurgy, mining erergy,building materl, chemical industry and light industry.The gear velocity is no more than 20m/s and right or inversy direction allowed. The decelera-tors are horizontal installed with an sloping angle no more than 20'C; The vertical moters areY series of three phase asynchronous moter,the installing forms of moters are B5 or B35.

The actuating tanperatures range from 0'C -40'C .

二、減速器的型號與標記Type and symbol of decelerator

減速器的標記代號中包括減速器型號，公稱中心距，公稱傳動比和公稱輸入功率。

The symbol of edcelerator ehcloses type of decelerator,nominal center space, nominal transmission ratio and nominal imput power.

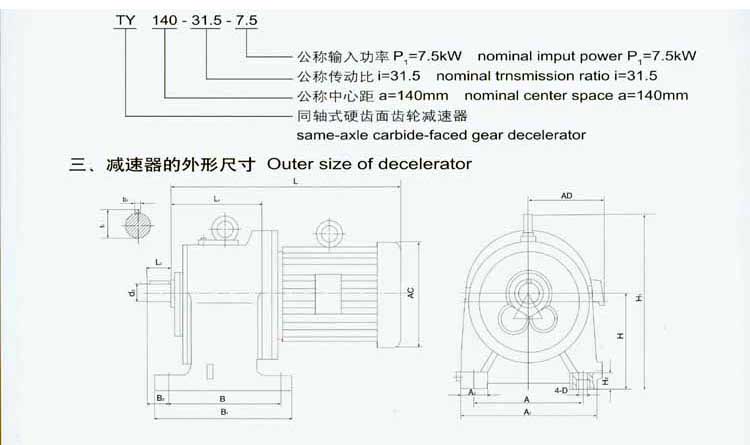

標記示例Symbol example
