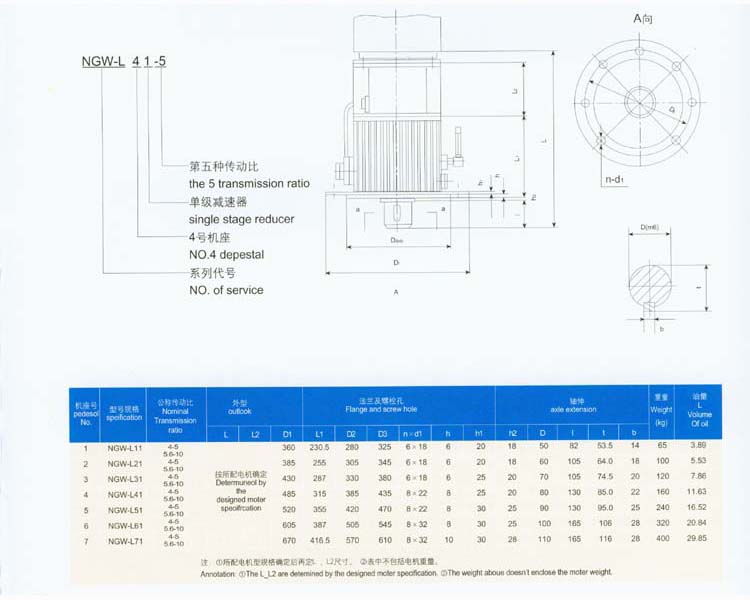

NGW-L型行星齒輪減速器

NGW-L Planetary Gear Decelerators

產品由NGW.L型單級L11-L71.兩級L42-L122兩種系列組成， 適用于冶金起重運輸輕化及通用機械設備，適用條件如下

高速軸***高轉速不超過1500r/min,

齒輪圓周速度不超過15m/s。

工作環境溫度為-40’C -45C.低于'C，啟動前潤滑油應預熱至0'C以上，可正反兩方向運轉。

The products are specificaed as single stage NGWL and double stage (L42-L122).They can be apliled to metalurgy craning, tramsportation, chemical industy and light industy as general mechanism. The pplicable condition are as fllows. The maximum wheeling speed of high speed axle no more than 1500r/min. Gear circle velocity no more than 15m/s. The actuating temperature ranging form- 40'C to45'C .preheat the hibricating oil before operation when below 0'C .The right and inversy direction allowed.
