NGW-S型行星齒輪減速器

NGW-S Plantary Gear Decelerator

本產品由弧齒輪錐齒輪傳動和行星齒輪傳動組合而成，包括兩級、三級兩個系列的NGW型行星齒輪減速器。主要用于冶金、礦山起重運輸入及通用機械設備。其適用條件如下，

高速軸***高轉速不超過1500r/min;

齒輪圓周速度不超過13m/s,

工作環境溫度為-40'C ~ 45'C;

可正，反向運轉(正向順時針為優選方向)。

The products are made up of arc-taper gear and planetary gear transmission, including two stage, three stage planetary gear reducer.

They are being applied in metallurgy, mining, craning transportation and general mechinery.

The appliable conditions are as follows.

maximum wheeling velocity of high speed axle no higher than 1500r/m.

gear circle velocity no higher than 13m/s.

actuating temperature ranging form-40'c -45'C

right and inversy divedtion allowed.

1.型式與尺寸

1.Type and size

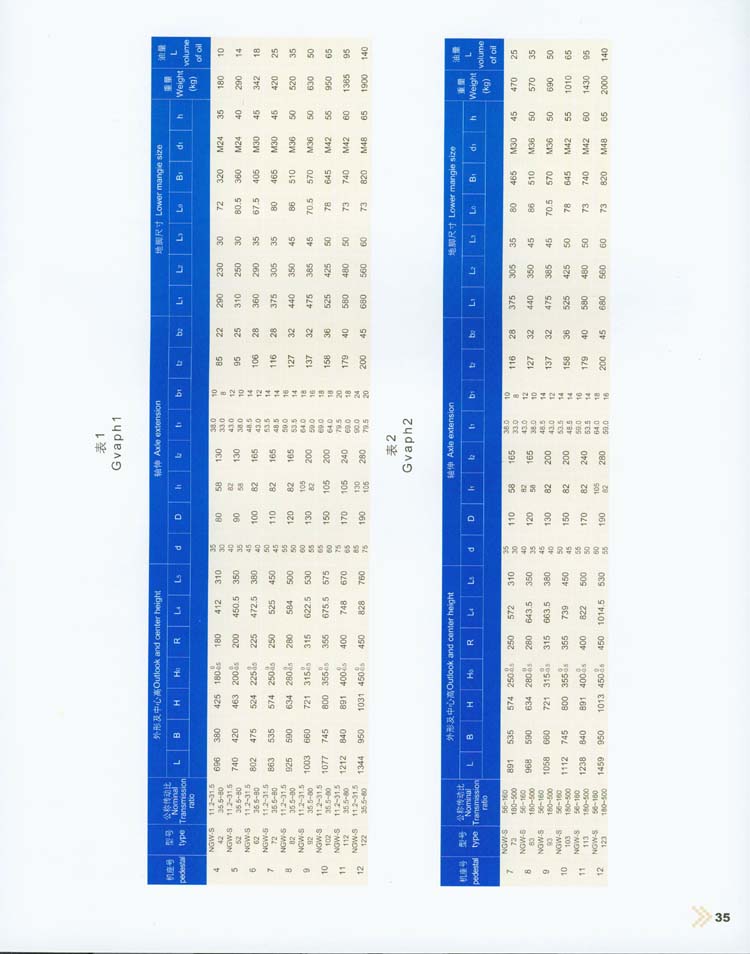

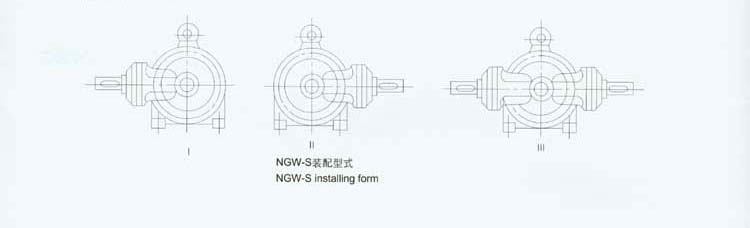

1.1裝配型式Isalling form

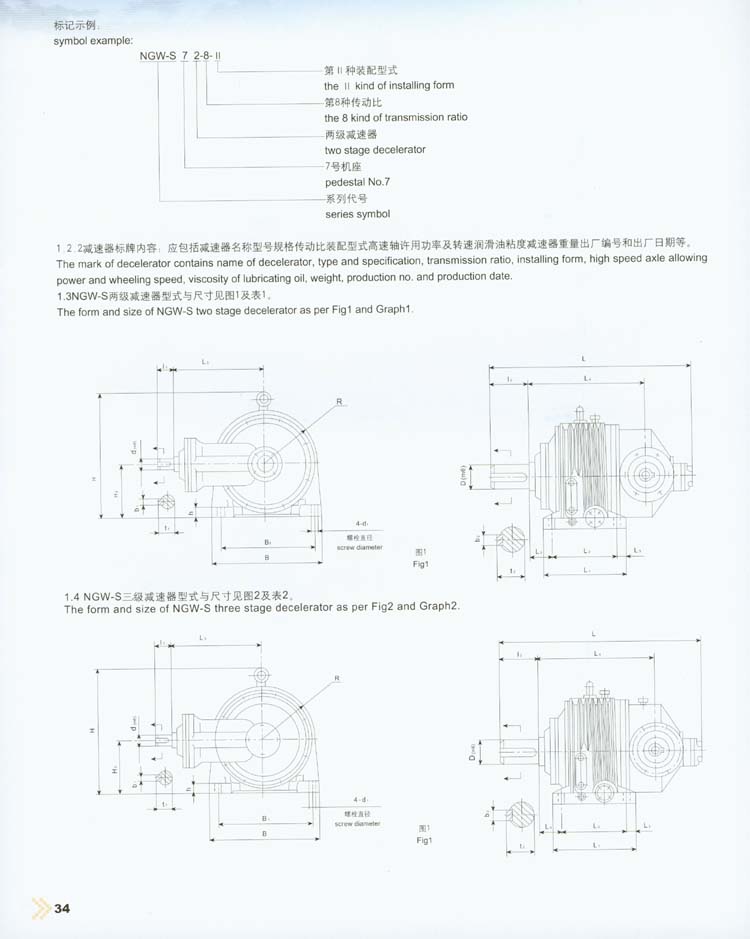

1.2型號與標記

Type and symbol

1.2.1減速器的型號:包括減速器的系列代號，機座號.傳動級數。傳動比代號.裝配型式。

Type of reducer, includes seres symbol, bedestal no.. tansmission progression, no. of transmission ratio, ntaling form.

系列代號:由行星減速器NGW和組合級弧齒錐齒(傘齒) 輪的(傘)字漢語拼音字頭S組成，"NGW-S" 代表系列代號。

Series symbol is made up by the head Chinese selling of planetary recucer NGW and combined stage are taper gear,NGW-S represeneates the series symbal.

規格機座號傳動級數傳動比代號及裝配型式用順序數字表示之一，

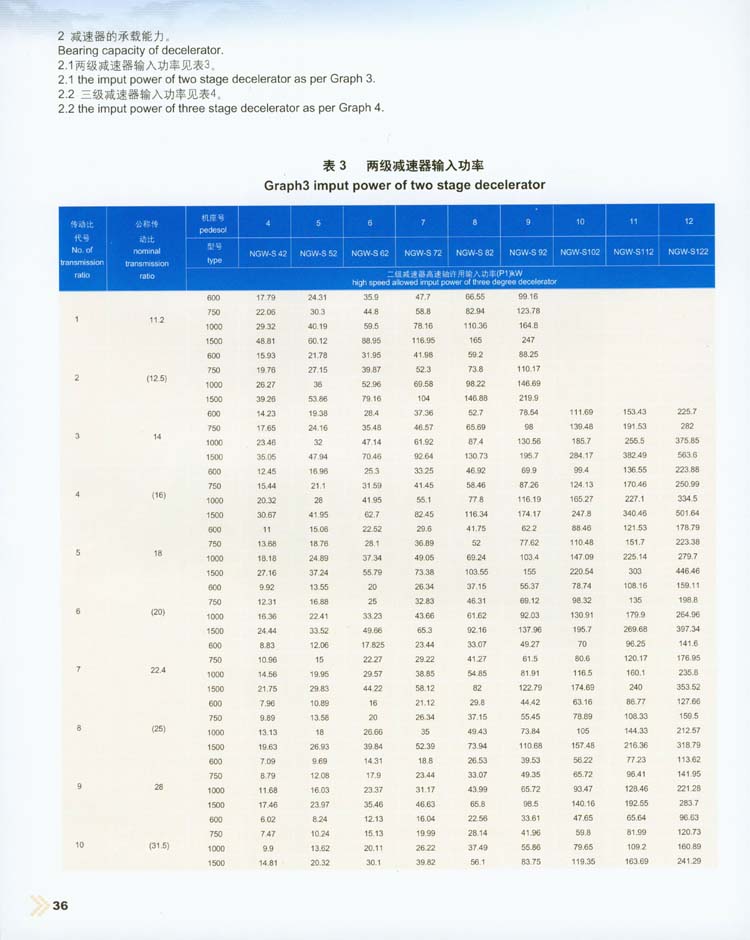

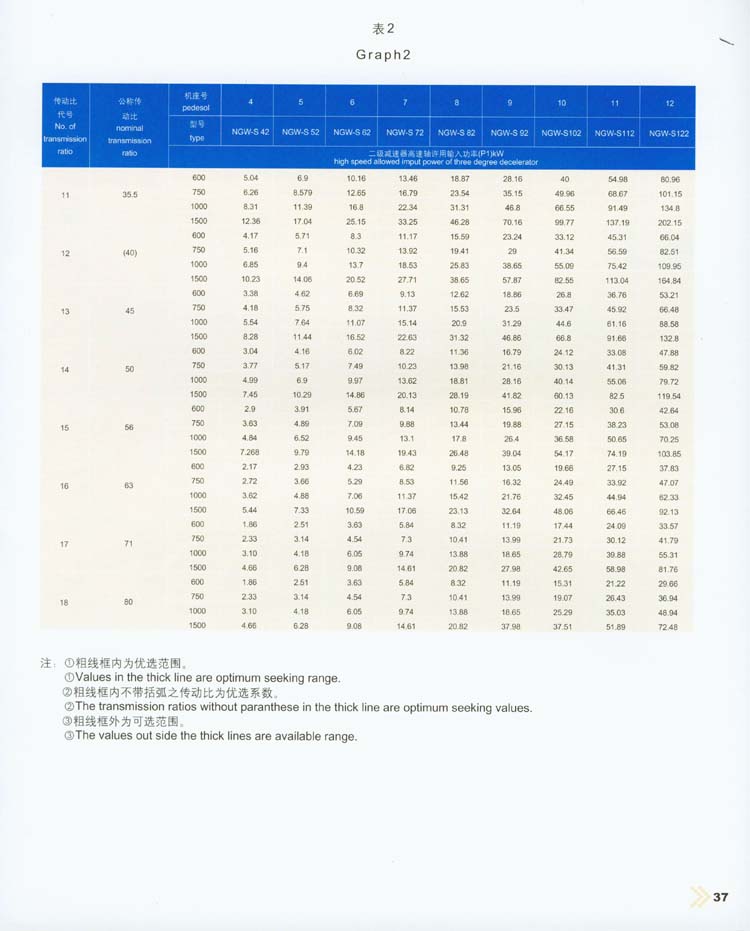

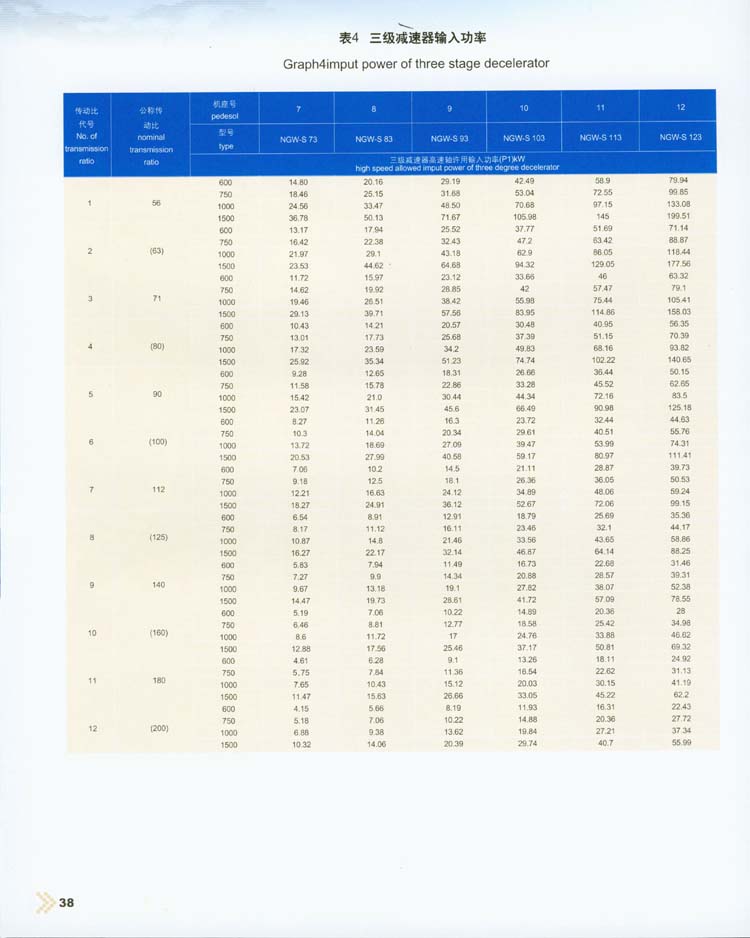

Specification: Numbers are aplied to represtant the pedestal no. tasmission progression, no of tasmission ratio and insalling form.
