一、QY型起重機用硬齒面減速器

Hard tooth face decelerator for QY type hoist

1.減速器的分類、應用范圍Classification and application scope of decelerator

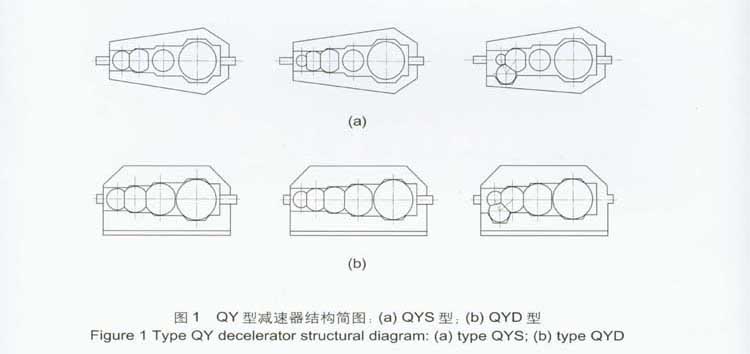

QY型系列減速器包括QYS型(三支點)和QYD型(底座式)兩個系列起重機用硬齒面減速器。它有三級，四級和三四級結合型三種，其結構簡圖見圖1。

QY series decelerator includes hard tooth face decelerator for type QYS (3-supporting- point) and type QYD (pedestal type) hoists. It has 3-step, 4 step and 3 and 4 combined type, see figure 1 for structural diagram.

此減速器主要用于起重機各有關機構，也可用于運輸、冶金，礦山，化工及輕工等機械設備的傳動中。其工作條件為:

1)齒輪圓周速度不大于20m/s;

2)高速軸轉速不大于1500r/min;

3)工作環境溫度為-40'C ~ +45'C;

4)可正反兩向運轉。

This decelerator is mainly used for each of related mechanism on the hoist, also for the transmission of mechanical equipment in transportation, meallurgy, mining, chemical industry, and light industry with working condition as follows:

1) Peripheral speed of the gear wheel does not exceed 20m/s;

2) Rotating speed of high speed shaft does not exceed 1500r/min;

3) Working ambient temperature is -40'C ~ +45'C ;

4) Both forward and backward rotation are available.
